Your first scene in Oncyber
HeadingDeveloping for OnCyber is enjoyable and straightforward, but there are some steps that may be more challenging than others, and that's why we're here to make it even more user-friendly
The Mission
This is a project plan for creating a fully immersive experience for a digital asset using OnCyber, a platform for creating NFT experiences.
The project requires the use of Blender 3.X to set up the scene, export settings, OnCyber config, and collaborators. The explanation provides detailed instructions and screenshots for each step of the project.
Resources
- Blender 3.X
- OnCyber account
Set up Scene
First of all, we need to separate our collider if we want to make a port. If it's a new building, we don't need to add colliders because OnCyber creates them automatically.
Then we will select the building base to parent everything to it.
For the material rendering, we will need to add the suffix _pbr so that OnCyber's engine recognizes them as such.
Finally, we will apply all transformations, with the coordinates (X→0, Y→0, Z→0) where the SpawnPoint will be by default (later, a spawnpoint can be manually configured within OnCyber). This is to ensure that we don't spawn inside any model.
With all of this in mind, our Hierarchy should look something like this:
Export Settings
Blender users should export every .fbx with transforms applied and this settings.
Maya users should export every .fbx with the normal Export Settings but (obviusly) always freezing transforms.
OnCyber configuration
It's time to open our browser, to access OnCyber we will do it through this website: https://oncyber.io/ja
Once we have created our account, we will log in and enter this other link (since searching for it from the official page is practically impossible to find): https://oncyber.io/destinations
In the "destinations" section, we can drop our .glb file in the box to create a navigable space.
Once we have uploaded our .glb, we will be redirected to a space where, if we have followed the previous steps, our scene will appear with the .glb already placed and with all the functionalities.
We will also see a panel on the right side of the screen, which we can configure the physical options.
Background

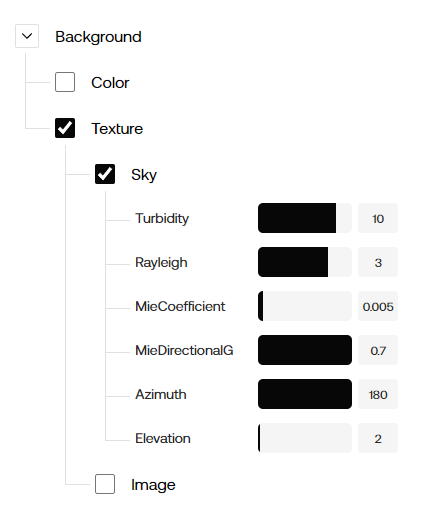

In this tab, we can configure either a color or a pre-defined Skybox with some options, or an external image. In this case, we will choose to import a ready-to-use image for the Skybox.
Floor
Here we can either leave our space with only the floor that we import, add water to it, or even create a floor that reflects, to which we can add a normal map.
Fog
Not much to add, option to choose how far or close you want the fog to act in the scene.
Player
Controllers that apply to all users within this space.
Renderer
This tab is exclusively for how our models look. We can have them receive light from a skybox previously configured in the engine (Scene) or add a custom one (Image).
Placeholders
In case we want to visualize our placed NFTs or show placeholders.
Testing scenes
Once we have set up the scene to our liking, we will click on the "upload" button to save our scene to "destinations".
Click on "view uploads" to better manage the final steps.
We will find our scene, select the three dots on the right to see the options:
View
In View, it will open a window with our space running locally.
Update 3D model
Here we can replace our .glb model with its updated version. It will automatically open a tab with the scene and its configuration.
Edit scene
To edit the scene, open a new tab with the configuration options.
Use now
When we access “use now”, it will redirect us to our main scene in "multiplayer" mode, but this time with a menu on the left containing different things we can add to our space, such as NFTs, links, text, videos, links, and even portals and streams.
Collaborators
If we access the "use now" option from the "your uploads" URL, we will find our Avatar and a + on the top right corner of the screen.
By clicking, we will see a "edit collaborators" window, where we can see who is inside and with what responsibilities within the scene. We can also find a link to invite whoever we want to access the space we have created.
Conclusion
The guide covers everything from setting up the scene in Blender 3.X to exporting the file with the correct settings, configuring OnCyber, and collaborating with others. By following this guide, users can create a polished and engaging experience for their digital assets on the OnCyber platform.
